CUSTOMIZED FAN FILTER UNIT FOR PROCESS EQUIPMENT

Customize FFU for your process equipment, perfectly control the environment and its value

Status, variable speed, fan pressure difference and constant flow monitoring and alarm, and visualized graphic control system.

01.Customized Specification Design Considering Space And Cleanliness Requirements

When building the fan, according to the size and cleanliness required by the existing machine space, it is designed to be a single fan or multiple fans, and the size of the fan is adjusted to match. The outer box of the fan is made of SUS304, SUS403, aluminum-zinc plating, bright surface effect, etc., which can be made according to customer requirements.

【Single fan】

02.Fan Type Selection:sigle Fan Or Multiple Fans Considering Space, Maintenance And Cleanliness Requirements

When building the fan, according to the existing machine requirements, design a single machine or multiple machines, and customize according to the required size, cleanliness, etc.

【Multiple fans】

【Single fan】

03.Filter Replacement:Top Or Bottom Replacemt Considering Space And Requirements

According to the needs of maintenance considerations, a lift-up filter or a lower-removable filter can be installed.

【Single dual fan: detachable filter】

04.Function Option:SMFS (pressure,temp / humidity,cleanliness)

SMFS module available to expand functions and data collection such as pressure, temperature, humidity, velocity, particle, VOC, flow, vibration and electricity for associated status monitoring.

Smart Muti-Fuction Sensor
【SMFS】

【The environment of the process equipment can be monitored】

05.Monitoring And Control System:hmi Panel Or Computer For Central Monitoring

HMI touch panel installed on equipment or computer for central monitoring remotely.

【Control circuit diagram】

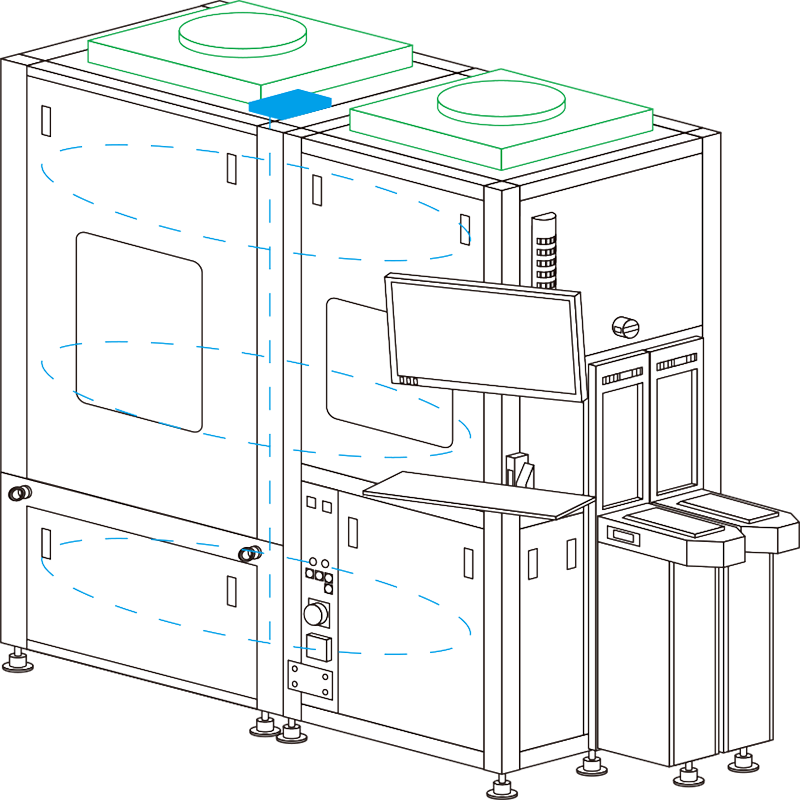

06.Support Of Flow Simulation

In comparison to clean room requirement, the contamination prevention for Automation Transportation or Process Equipment is more critical. Firstly, the prevention of dynamic particle generation from automation equipment, and secondly, the prevention of particle contamination entering from surrounding environment(via pressure control). Beside of clean environment, due to space limitation, the thin type of fan filter unit is required and the easy installation method and maintenance for side FFU installation are necessary.
