    • Location：FFU ❯ 2.5x5 High efficiency type DC FFU
    ▷ B
    2.5x5
    High Efficiency Type DC FFU

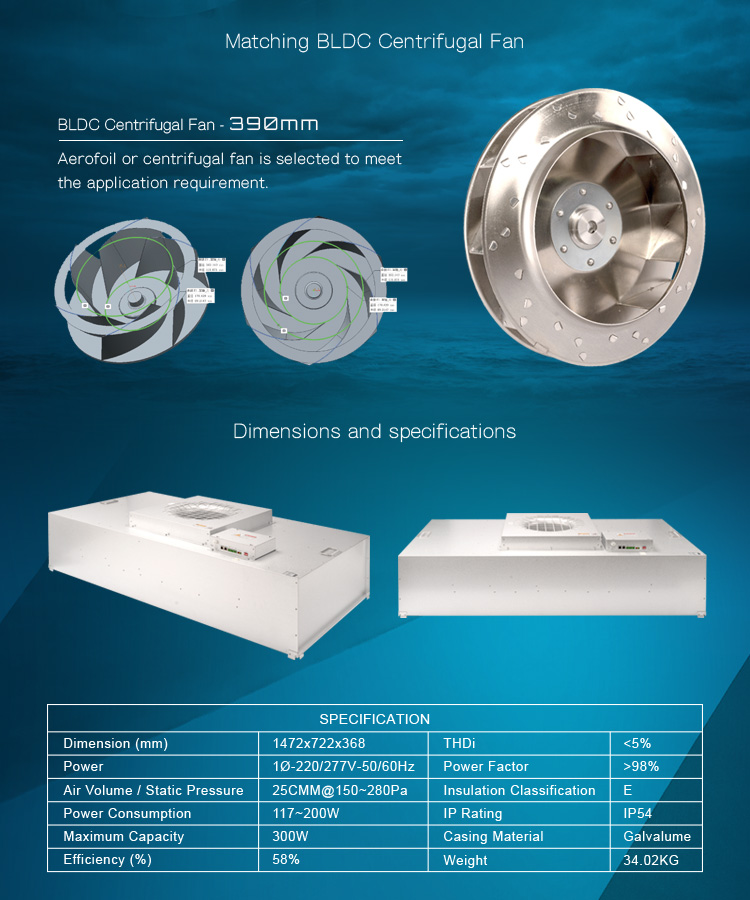

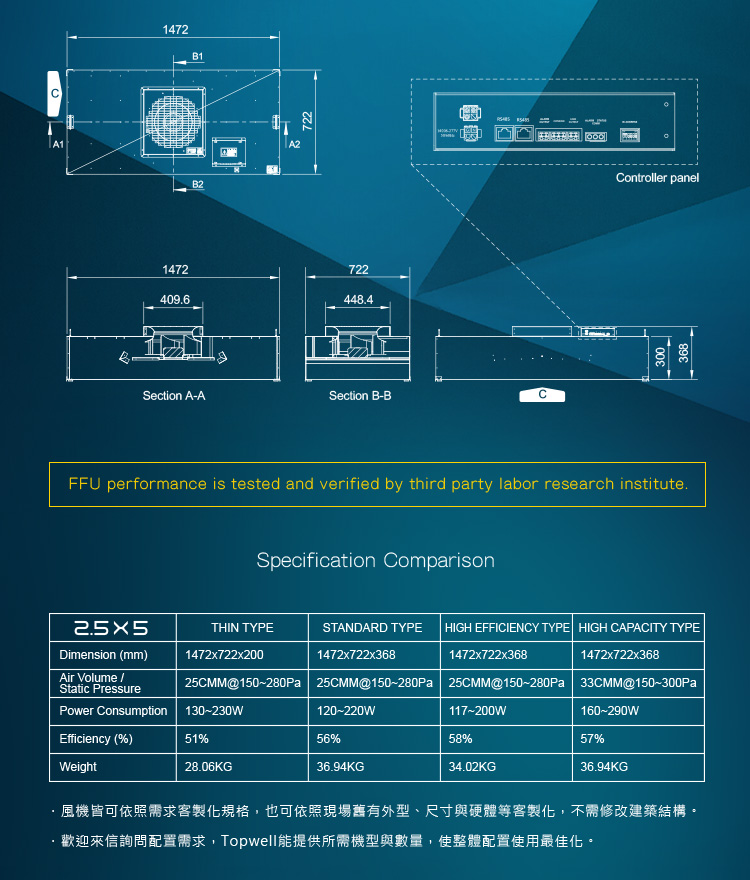

    Dimension：1472x722x368 mm
    Power Source：1Ø-220/277V-50/60Hz
    Operating Range-Air volume：25CMM@150~280Pa (Air volume/Total static pressure)
    Power Consumption：117~200W
    Operational Abilit：300W
    Highest Efficiency：58%
    Motor Dustproof And Waterproof Rating：IP54
    Cabinet Material：Galvalume
    Weight：34.02 kg

    Details
