    • Location：FFU ❯ 4x4 High capacity type DC FFU
    ▷ C
    4x4

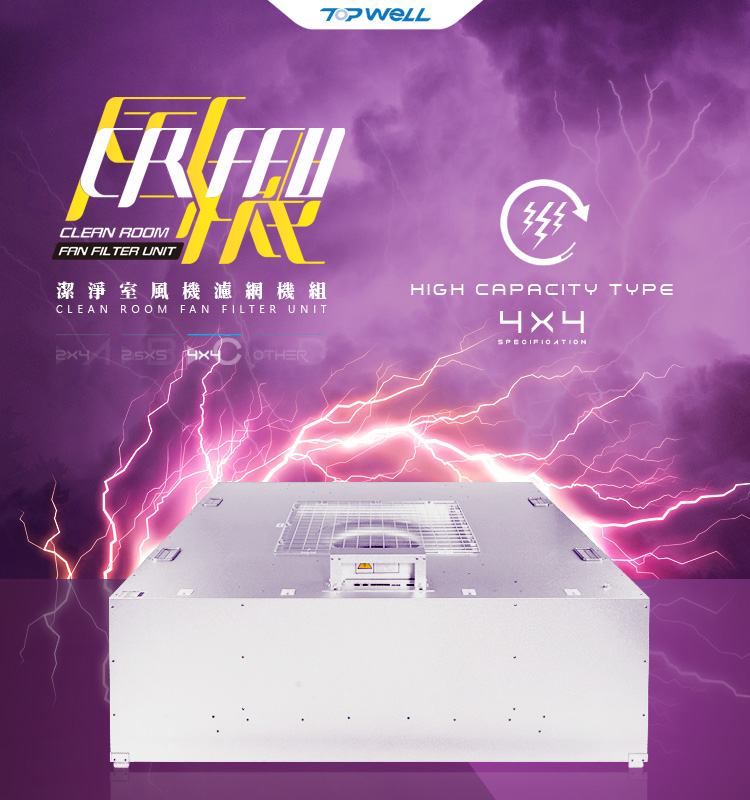

    High Capacity Type DC FFU
    Dimension：1172x1172x380 mm
    Power Source：1Ø-220/277V-50/60Hz
    Operating Range：43CMM@180~300Pa (Air volume/Total static pressure)
    Power Consumption：220~380W
    Operational Abilit：500W
    Highest Efficiency：60%
    Motor Dustproof And Waterproof Rating：IP54
    Cabinet Material：Galvalume
    Weight：52 kg

    Details
